SP50144-SS
Roll over image to zoom in
9306S-HM1C-U3

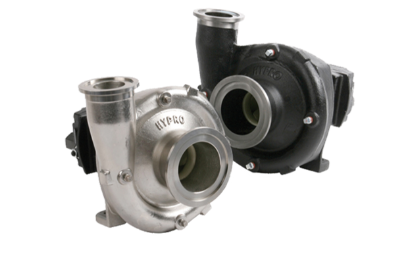

This is a 316 stainless steel, hydraulic driven centrifugal pump.
Note: Flanged connections will also need:
Universal Flange Gasket
Universal Flange Clamp
APPLICATIONS:
Open center, closed center, load-sensing systems.
Cross Reference:
9306S-HM1C-3U
93100
Additional information
| SEAL | LifeGuard silicon carbide |
|---|---|
| MOTOR | Internal gear geroter |
| PORTS | 300 X 220 (3U) Universal Flange |
| IMPELLER | Polypropylene |
| MAX PRESSURE | 127 PSI |
| MAX FLOW RATE | 283 GPM |
