RA012RR

Roll over image to zoom in

Status:In stock

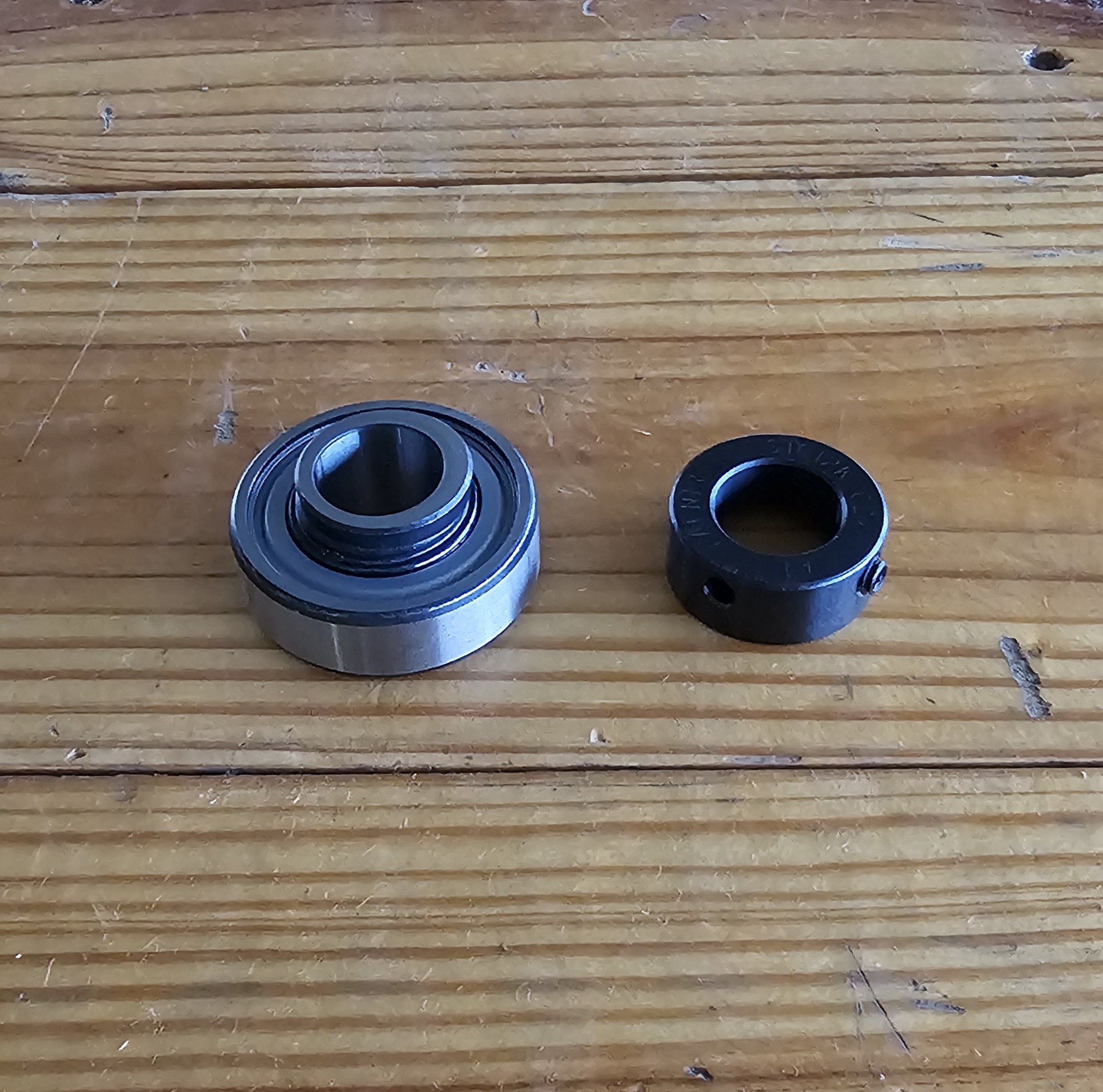

0.75″ SEALED, w/LOCKING COLLAR

Category: NON-GREASABLE WITH NARROW INNER RING Brand: Timken

Single row, steel bearing and rolling elements. Double sealed. R-seals keep the lubricant in and dirt/moisture out.

APPLICATIONS:

Orthman 120-041

Cross Reference:

308-RA012RR

NPC012RPC

120-041

JD9242

Additional information

DIMENSIONS	Overall Width: 1.216" (30.886mm) Outer Diameter: 1.8504" (47mm) Inner Ring Width: 0.8438" (21.433mm) Outer Ring Width: 0.5906" (15mm) Radius: 0.039" (0.99mm) Basic Outer Ring Size: 204
OD TYPE	CYLINDRICAL
BORE	0.75" (19.05mm) CYLINDRICAL
SEAL	2 seals
CAGE	Molded Window Nylon
INTERNAL CLEARANCE	C3
TOLERANCE	IMPERIAL SERIES ISO: P0
